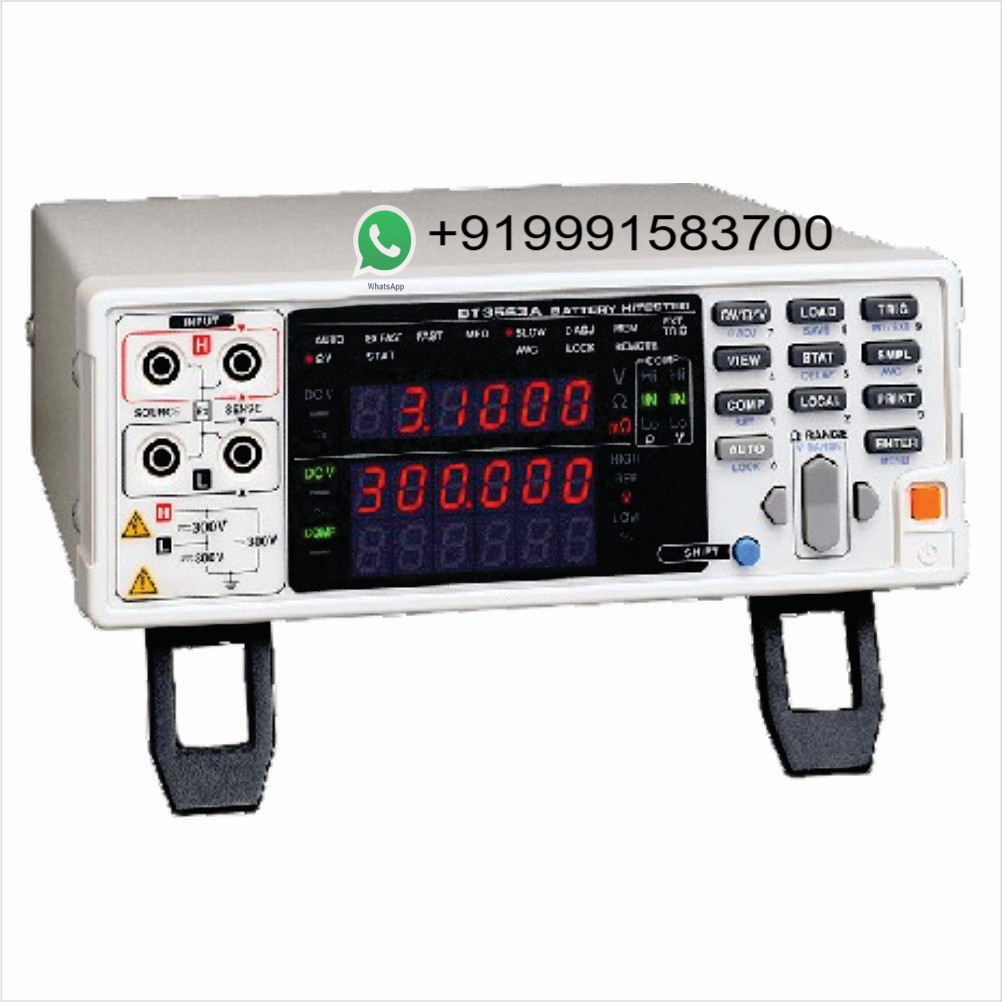

Battery HiTester

Fully Automated Production Line Testing of Large Packs for xEVs or Large Packs of up to 300 V

Features:

• Simultaneous measurement of internal resistance and open circuit voltage.

• Fully automated production line testing of large packs for xEVs or large packs of up to 300 V.

• Measure from 0 Ω to 3.1 kΩ (minimum resolution 0.1 μΩ)

• Resistance measurement ranges: 3 mΩ/30 mΩ/300 mΩ/3 Ω/30 Ω/300 Ω/3 kΩ

• Measure from 0V DC to ±300 V DC (minimum resolution 10 μV)

• Voltage measurement ranges: 6 V/60 V/300 V
