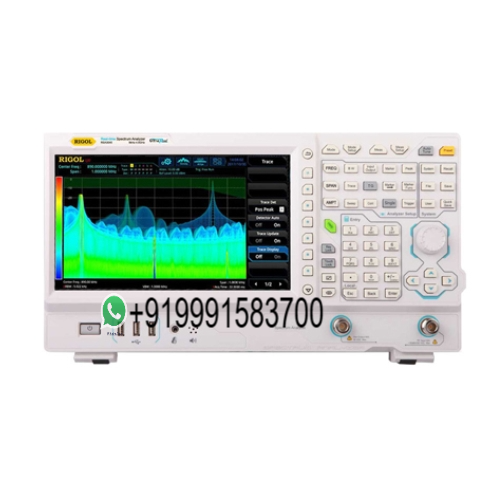

Real-time Spectrum Analyzer -For VAN RSA3000Series
Features:
Built-in Vector Network Analysis mode
In VNA mode, you can make S11, S21, and DTF measurements for the components and circuit networks. The network characteristics of the components under test can be accurately demonstrated in Smith chart, Polar chart, and other formats.(*N-model ONLY)
Conduction/Radiation Pre-compliance with Built-in Emi Test
The RSA3000’s built-in EMI pre-compliance application software, combined with CISPR-compliant filters, pre-tests the product for conduction and radiation to identify and improve its conduction/radiation disturbance source and accelerate time-to-market.
Signal Triggering and Monitoring Via Fmt Mode
The FMT frequency mask trigger is a unique trigger mode for real-time spectrum analyzers. You can quickly build a template and accurately locate and trigger signals that match the template rules to detect sporadic anomalies within the monitored range.
Resolution Bandwidth As Low As 1 Hz
Resolving signals with similar frequencies is critical to verifying many RF devices and systems. With the RSA3000, the RBW resolution bandwidth with a scan bandwidth of only 1 Hz allows you to view more details of adjacent signals.
Danl As Low As -161 Dbm with Optional Preamp
View lower powered signals (harmonics, interference sources) and ease trouble-shooting in swept and real-time mode.
Multiple interfaces to improve the connectivity of the instruments
The instrument can be connected to a larger display/monitor via the HDMI interface for better display effects. The Web Control function allows you to directly control the device by accessing the device IP address, improving the experience of remote control.
Complete Operations with a Multi-touch Screen
RSA3000 with a 10.1-inch multi-touch capacitive screen with quick setup, and support a variety of gestures such as dragging, expanding, and zooming waveforms to provide a personalized interactive experience that maximizes your time.
Excellent Phase Noise Metric
Excellent sweep performance, phase noise as low as -102dBc/Hz.
