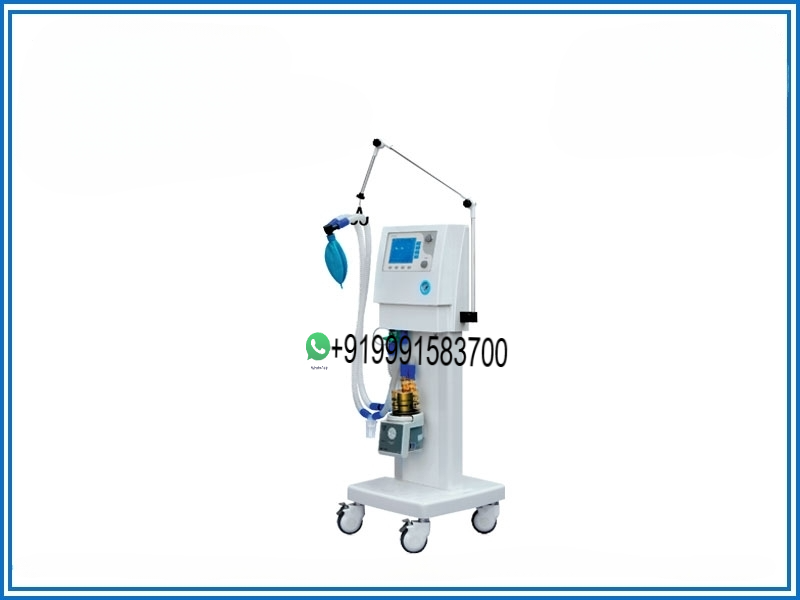

VENTILATOR VERTICAL SILVER
Product Description
Ventilator Vertical Silver is a multi-functional Ventilator and is applicable for children and adults in sickroom, ICU or of emergency.
Display Mode : High-definition 5.7” LCD screen display
Ventilation Mode : IPPV, SIPPV, SIMV, MANUAL
Ventilation Function : PEEP, SIGH, IRV
Ventilation Parameters
Tidal volume 50~1500ml
Rate 2~99bpm
SIMV rate 2~20bpm
I:E 2:1~1:8
Inspiratory trigger pressure -1.0~2.0 kPa
PEEP 0~2.0 kPa
Pressure range 1.0~6.0 kPa
SIGH 1.5 times the inspiratory time
Parameters for ventilation monitoring tidal volume, minute ventilation volume, IPPV rate, SIMV rate, total respiratory rate, I/E, peak pressure of airway, pressure – time waveform, flow rate – time waveform, PEEP, inspiratory trigger pressure
Security Alarm System
Airway pressure alarm : Upper limit setting range 1.0~6.0 kPa
Low limit setting range 0.4~2.0 kPa
Per-minute ventilation volume alarm : Upper limit setting range 3.0~30L/min
Low limit setting range 1.0~10L/min
Sustained high-pressure alarm : It will give alarm when stress have consistently been higher than 2.5 kPa
Suffocation alarm : It will give sound and light alarm if there is no tidal volume input for 15 seconds
Power alarm
Power : AC 220V±10% 50Hz±1Hz UPS, Storage battery
Mechanical Arms
We are Exporters and Suppliers of Ventilator Vertical Silver at wholesale competitive prices from India.
